69 Chevelle ls turbo build

98Camarod · 01-15-2015, 10:55 AM

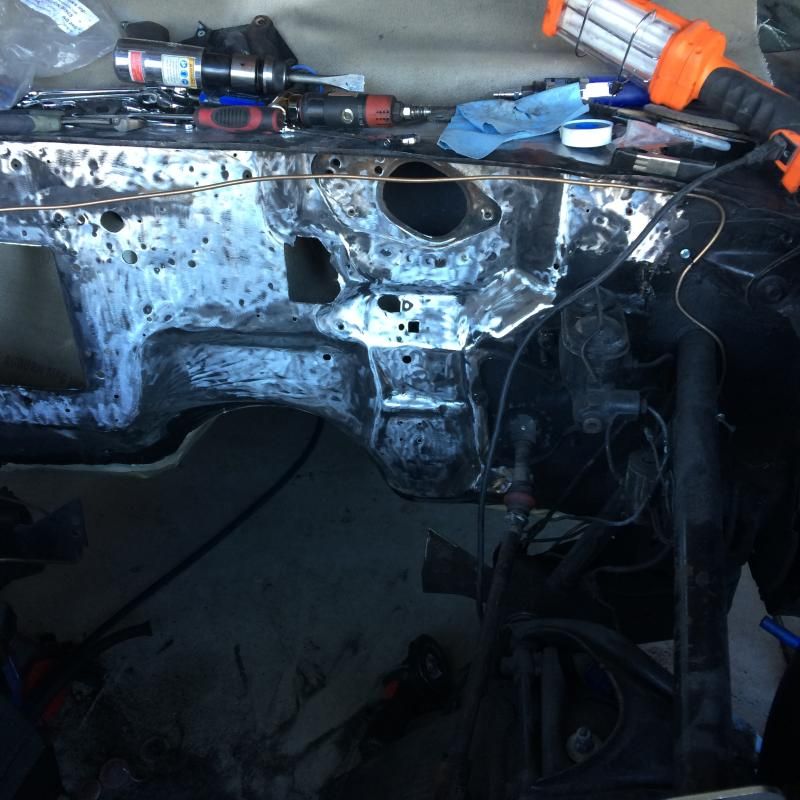

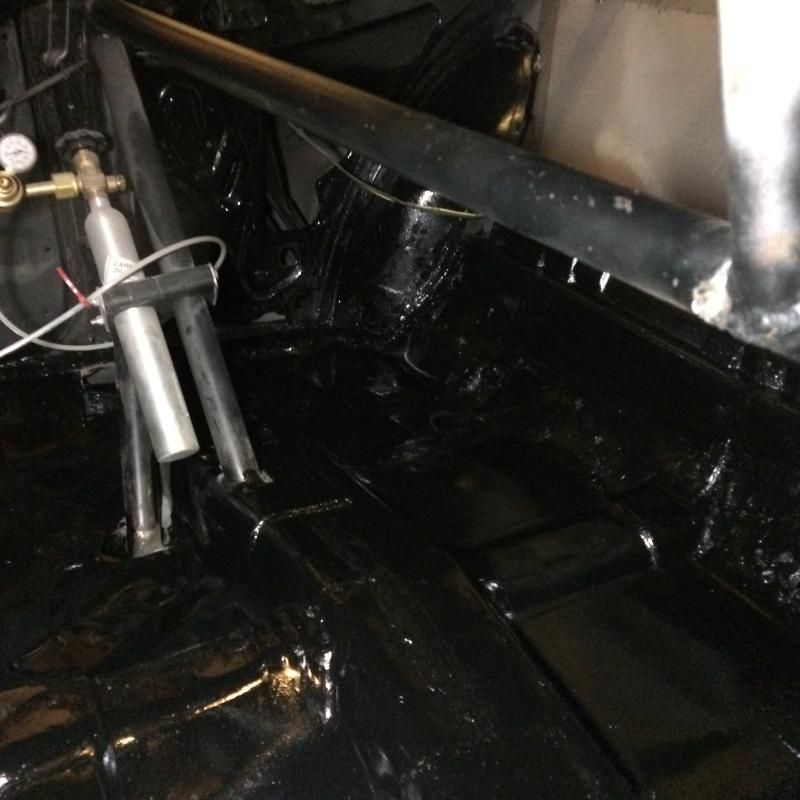

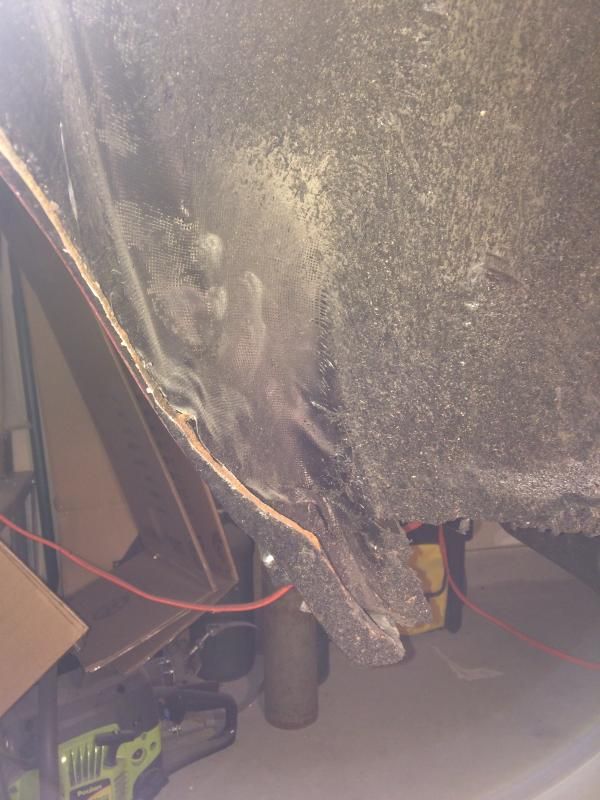

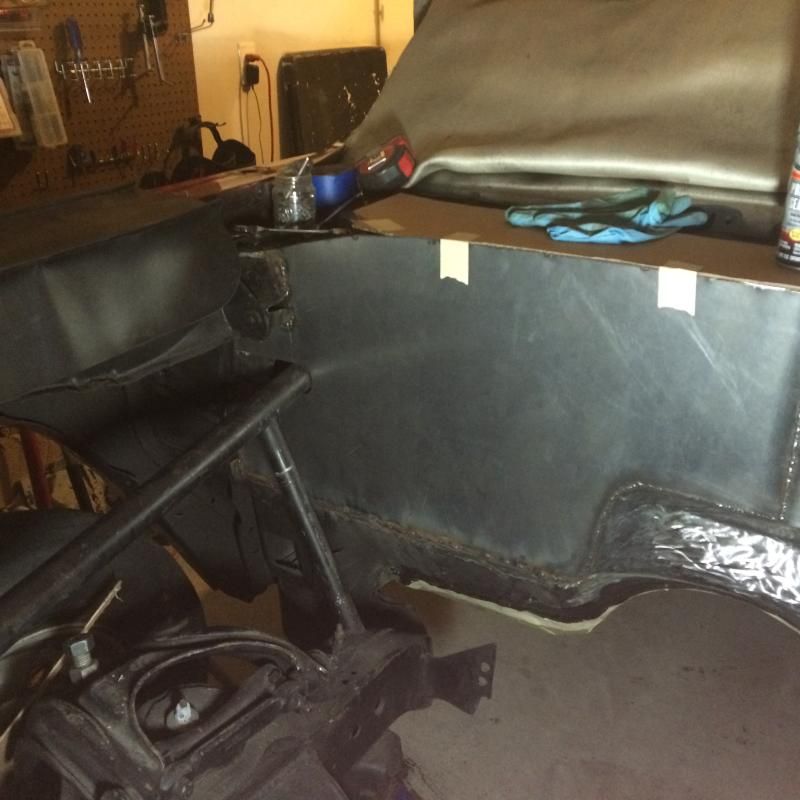

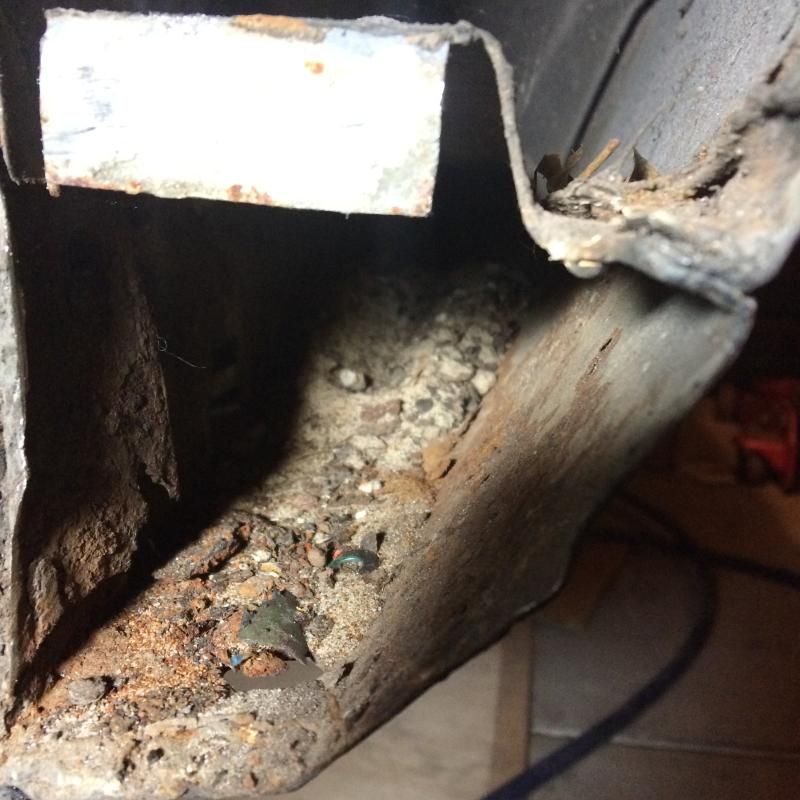

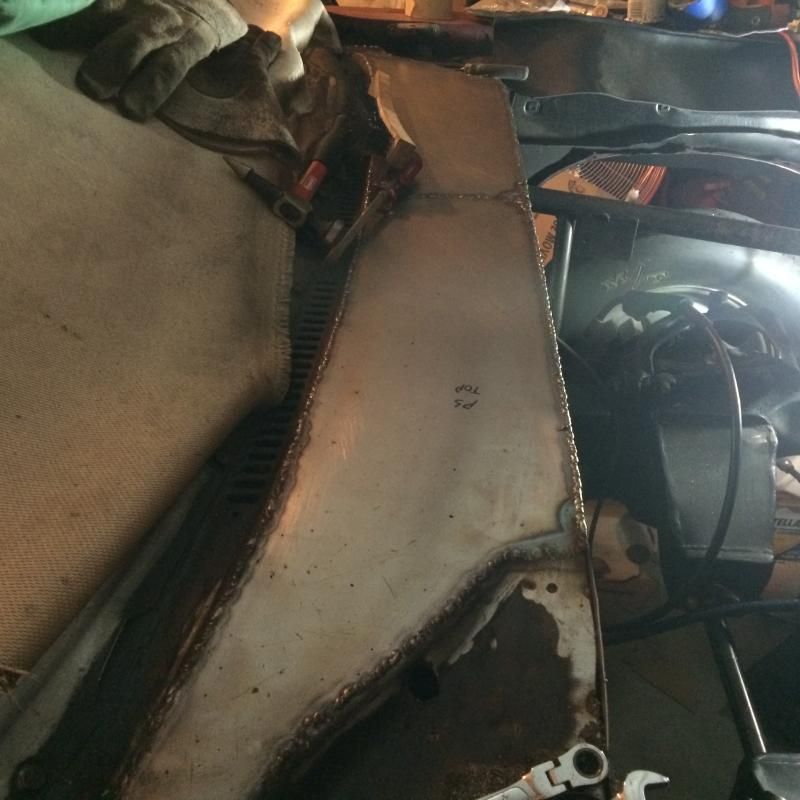

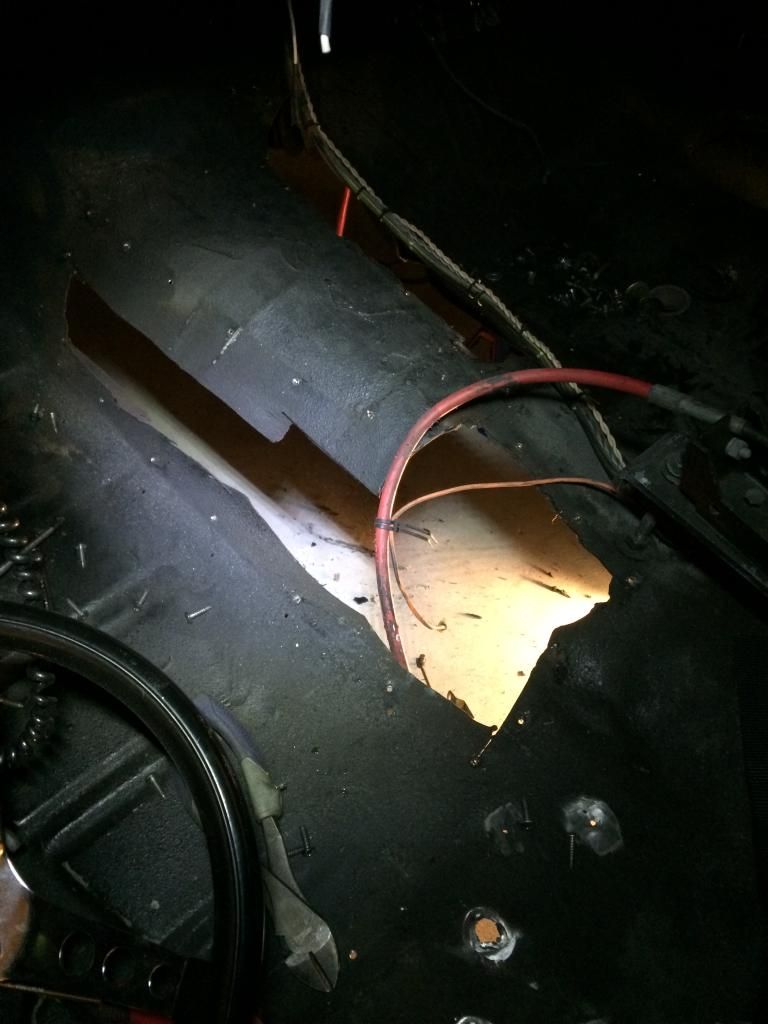

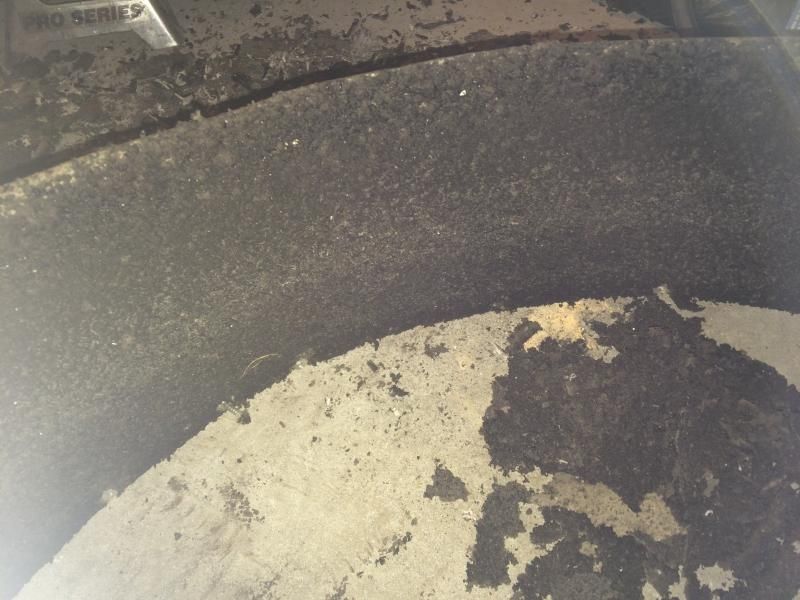

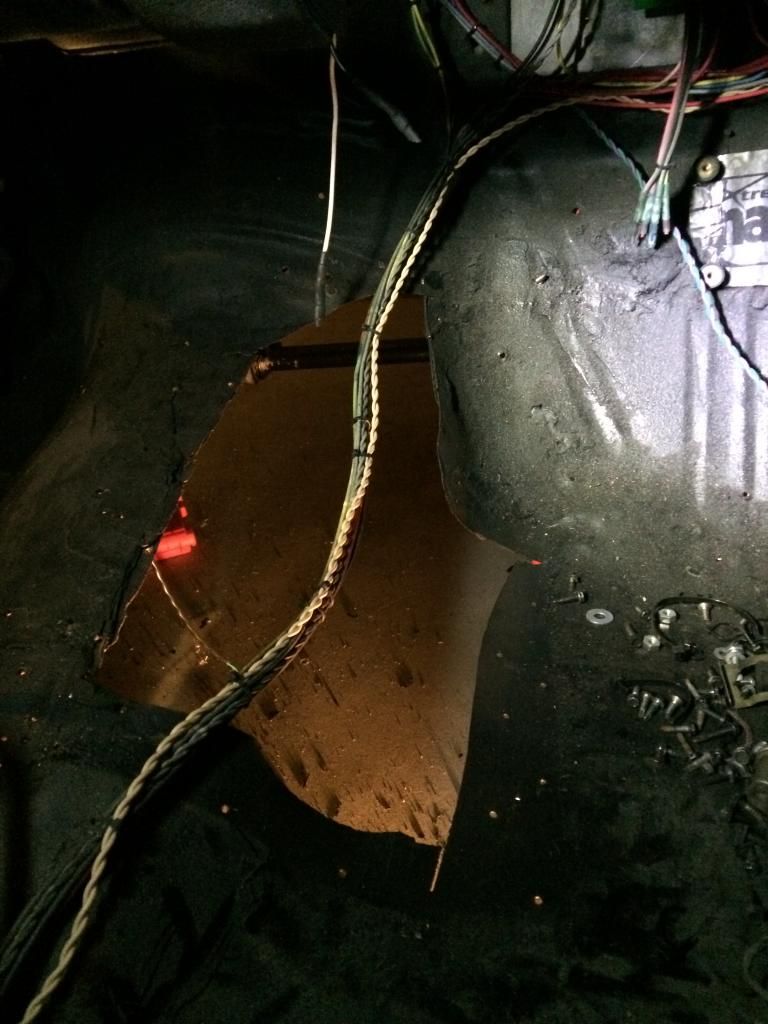

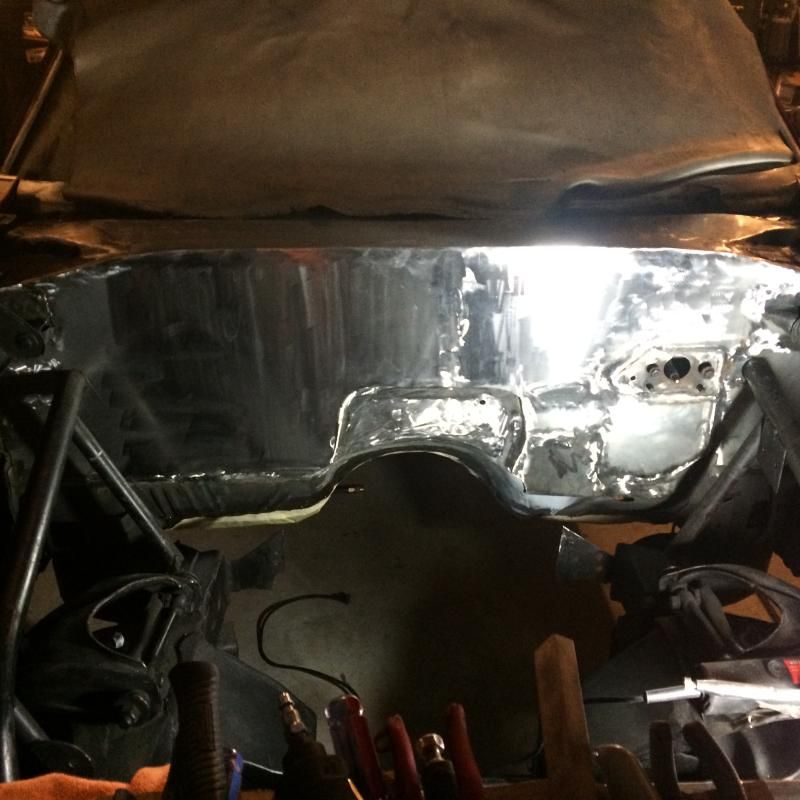

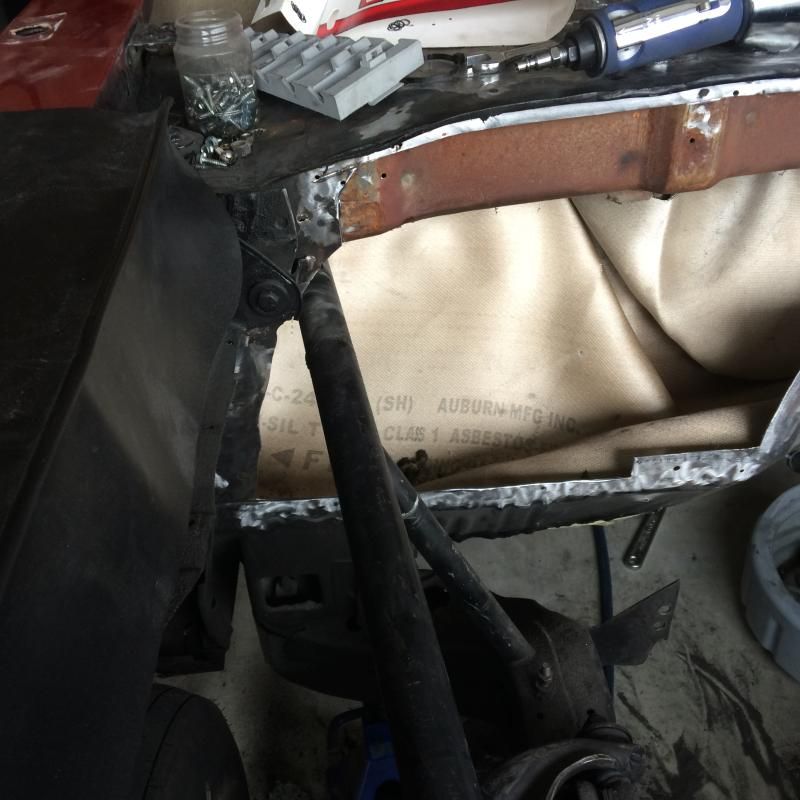

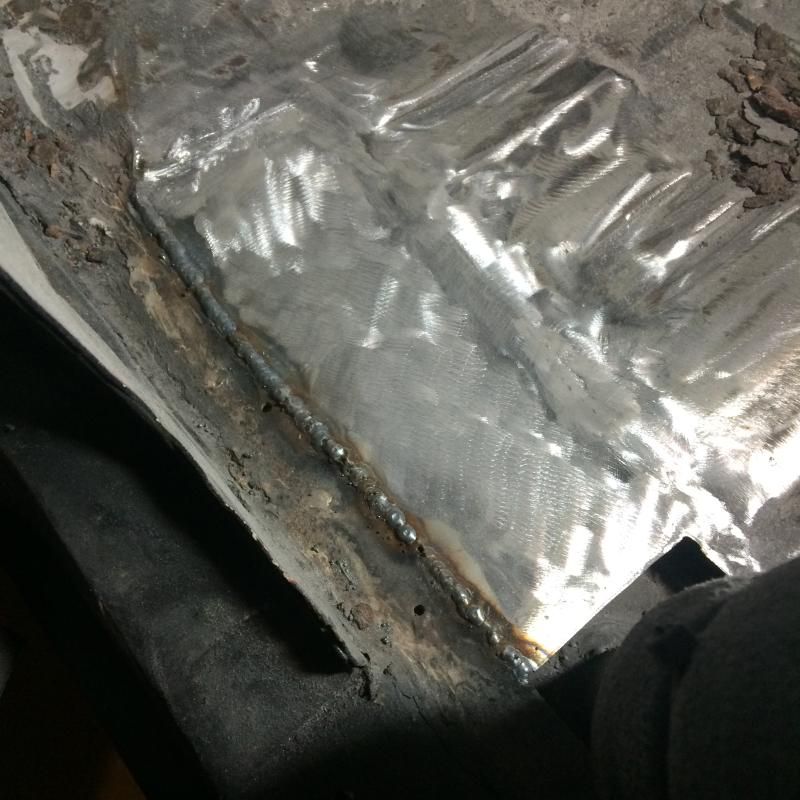

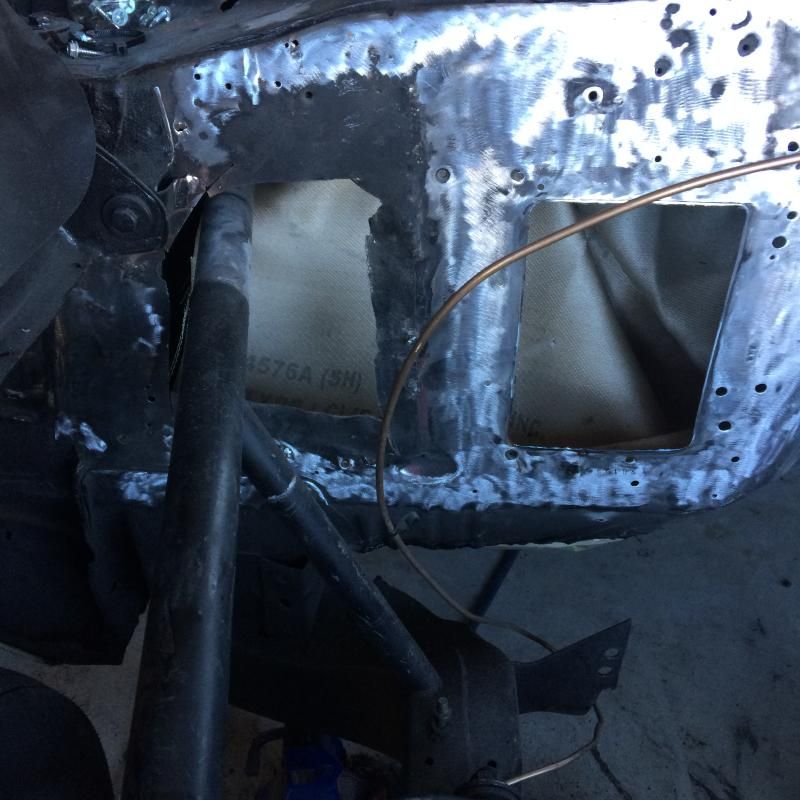

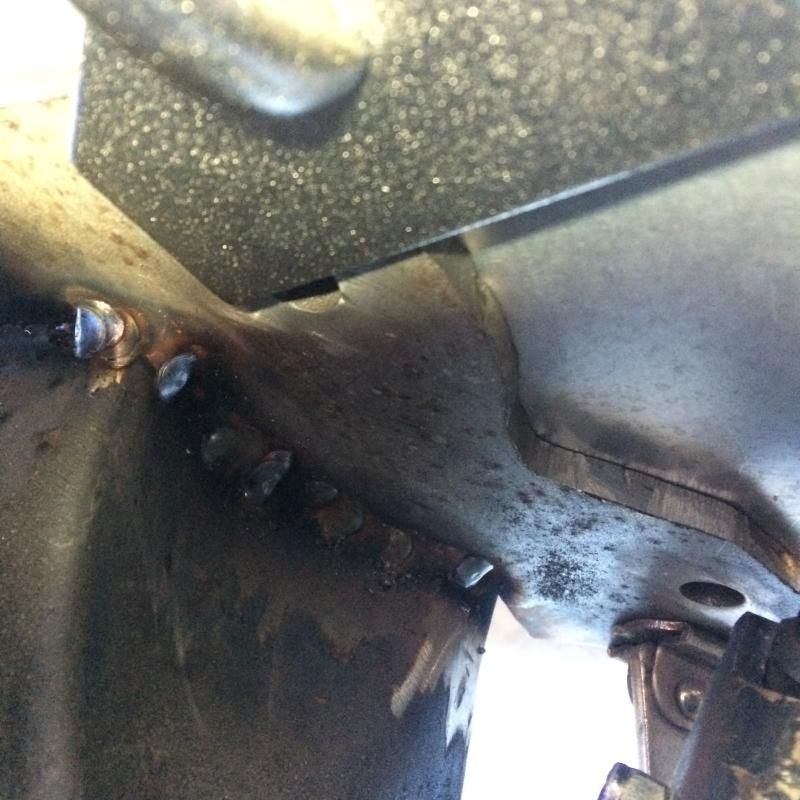

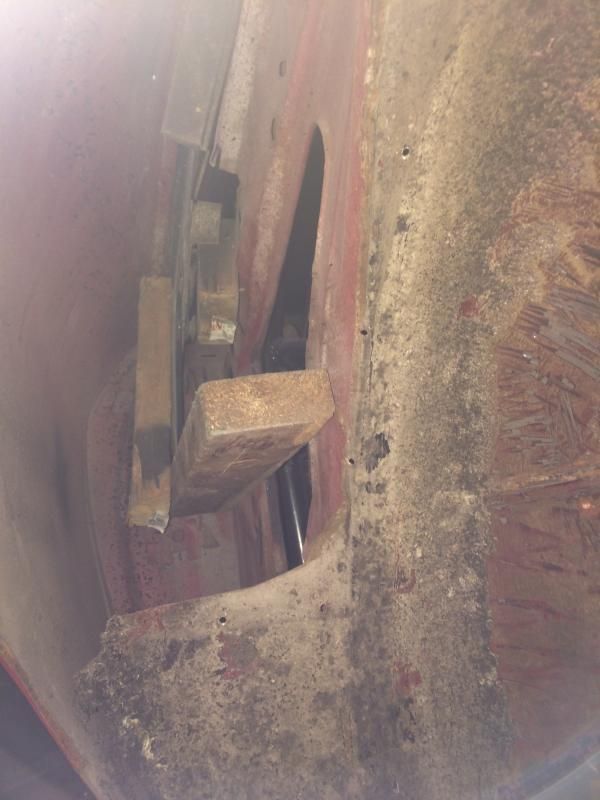

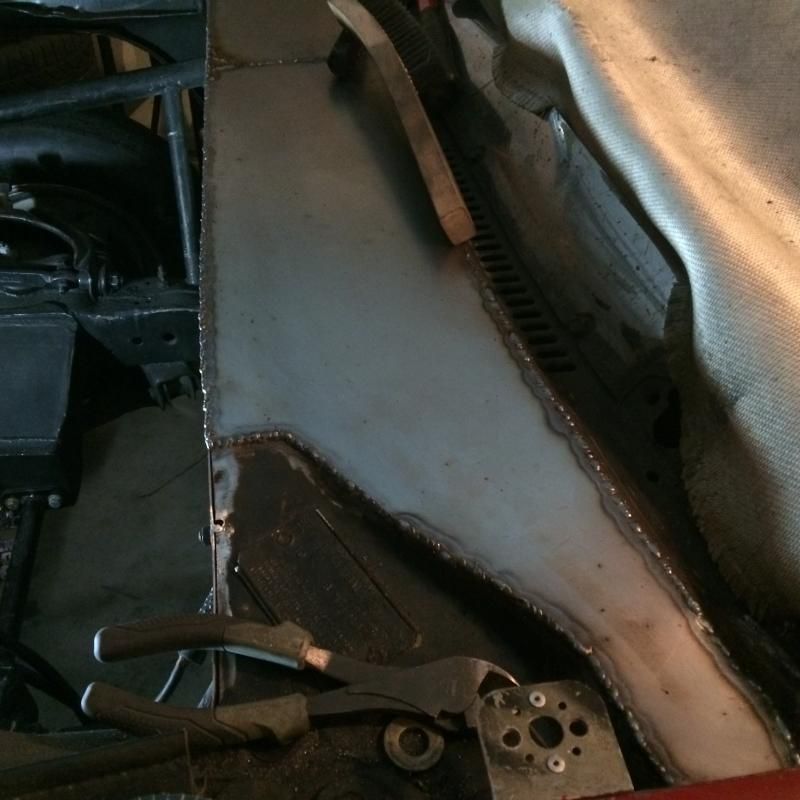

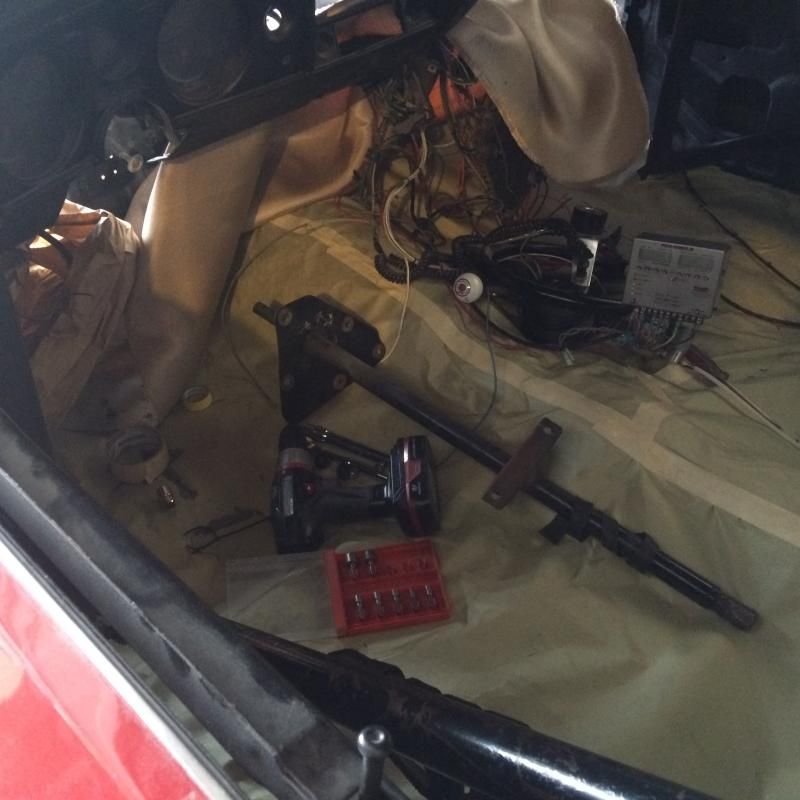

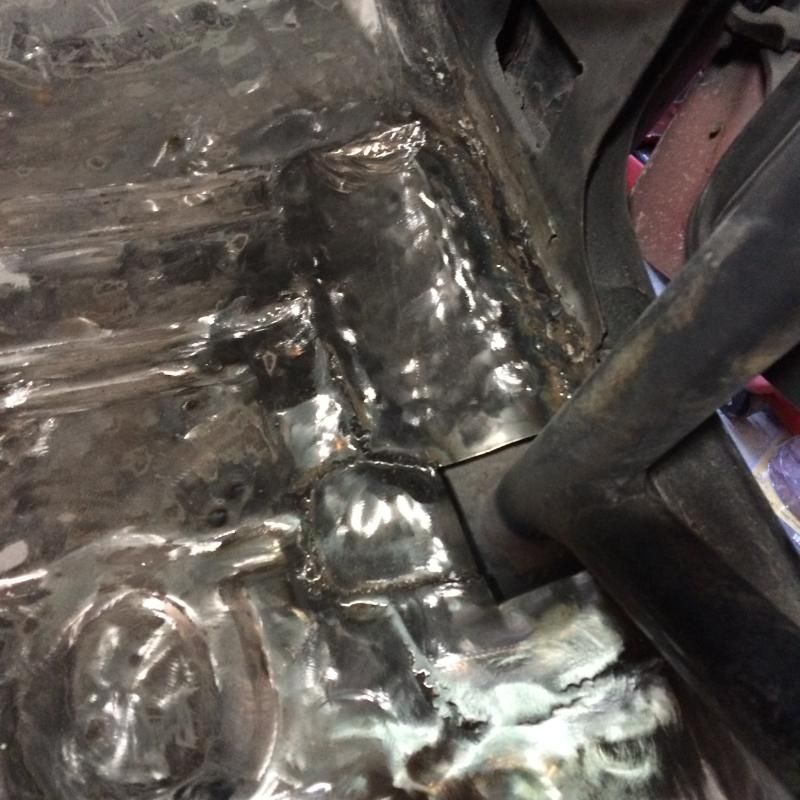

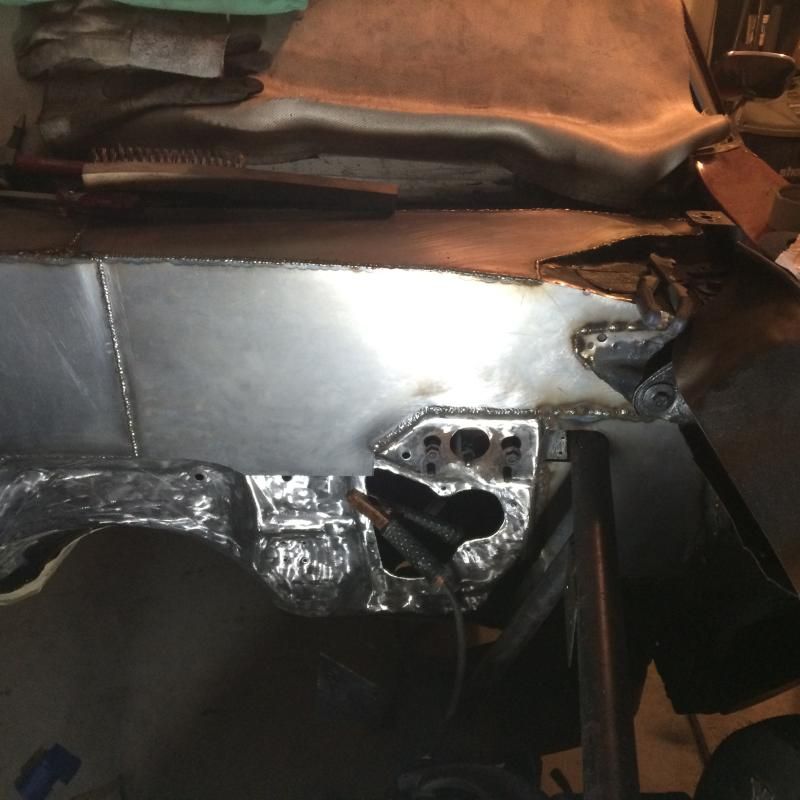

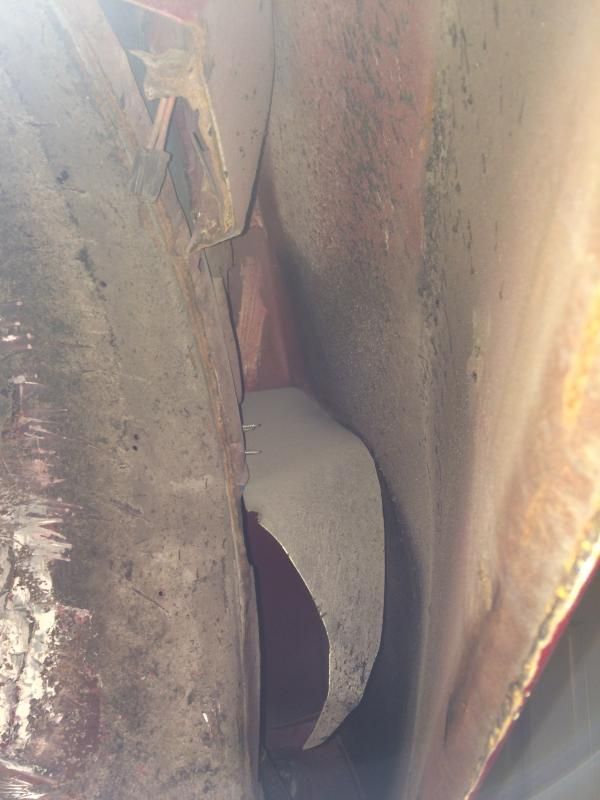

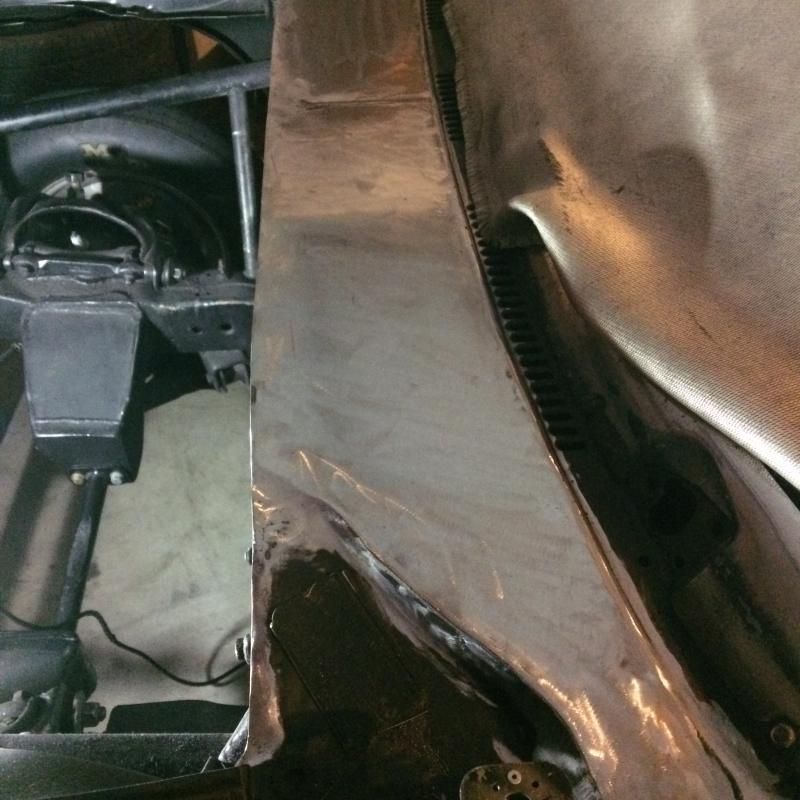

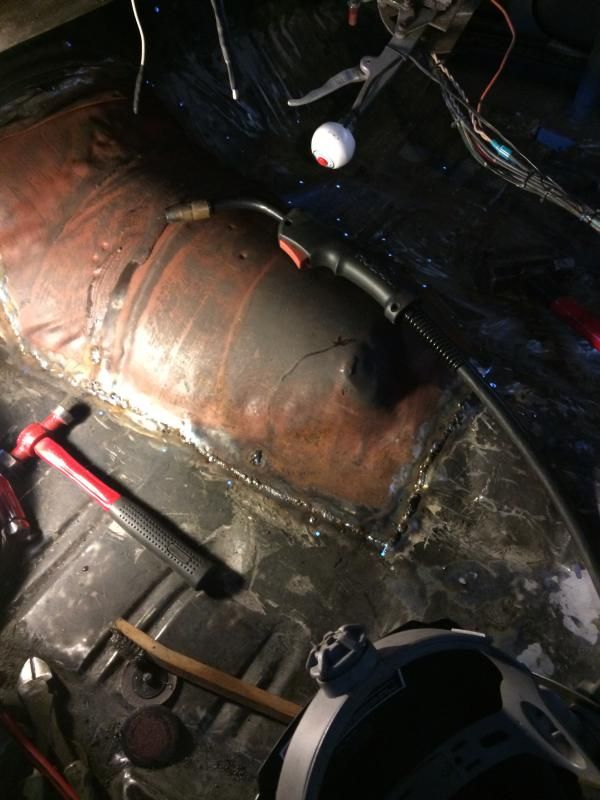

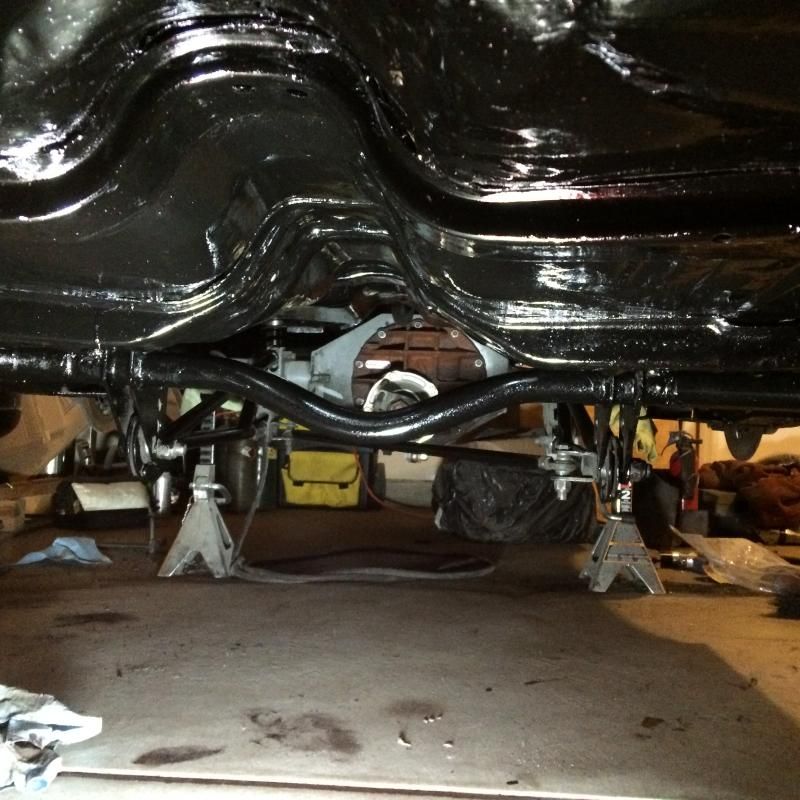

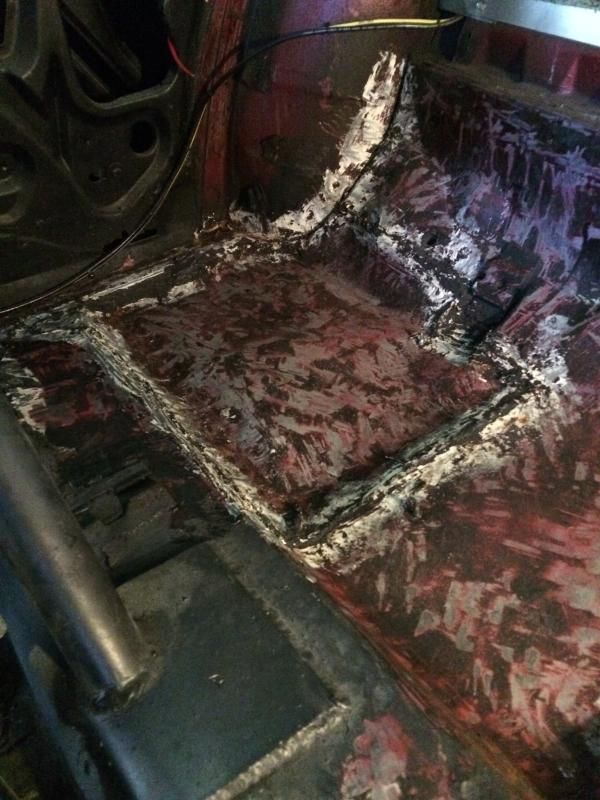

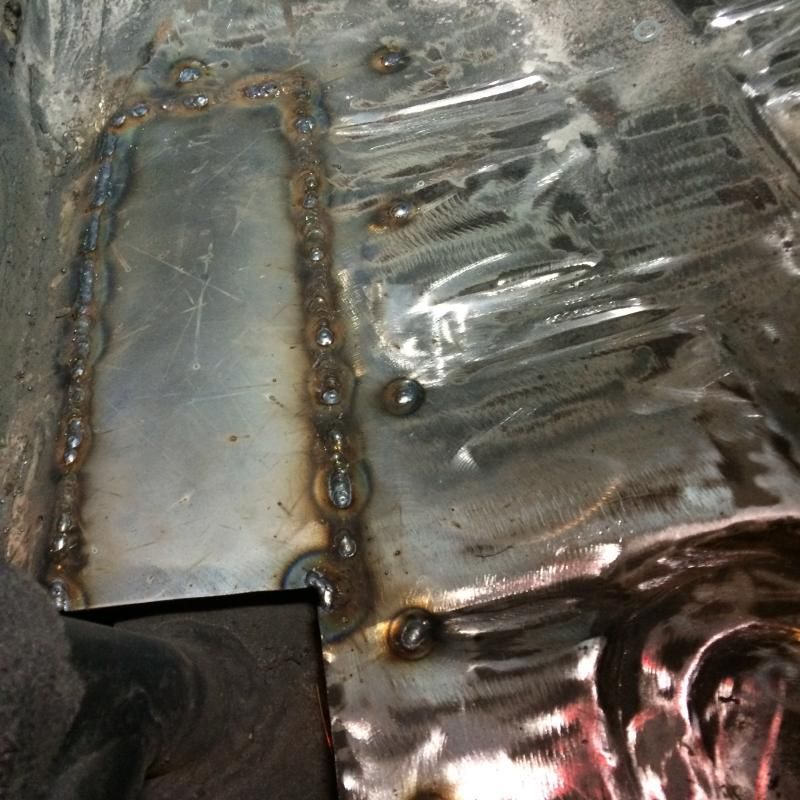

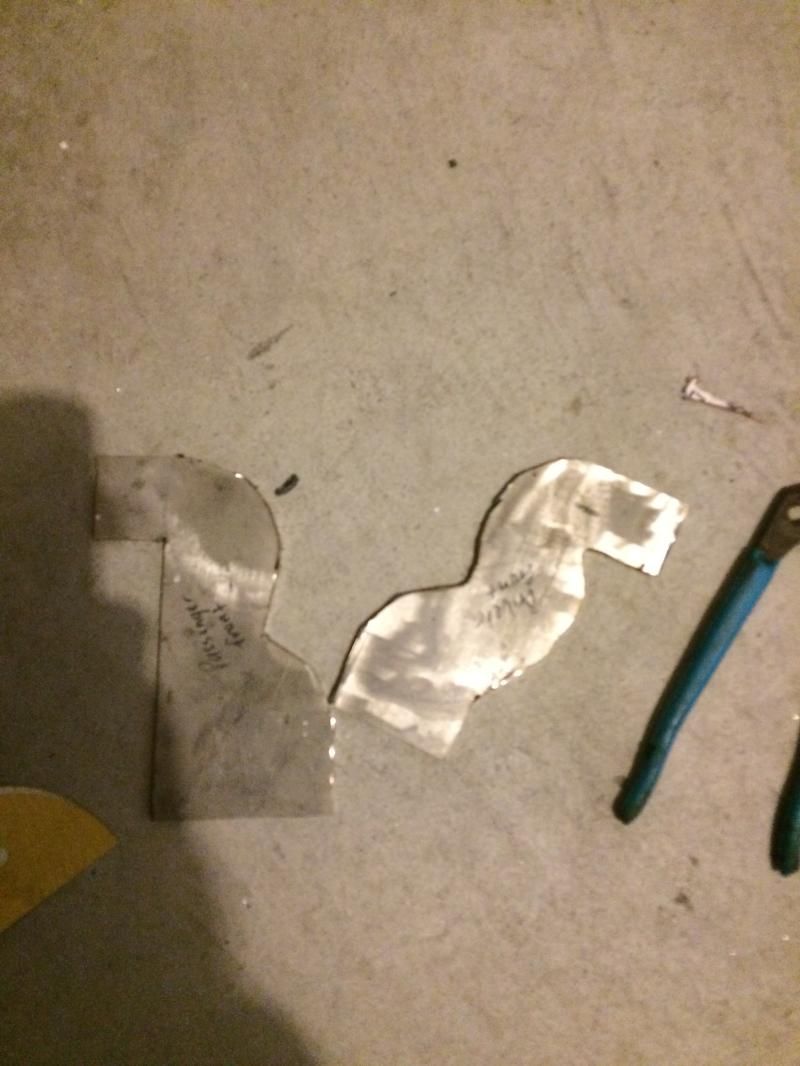

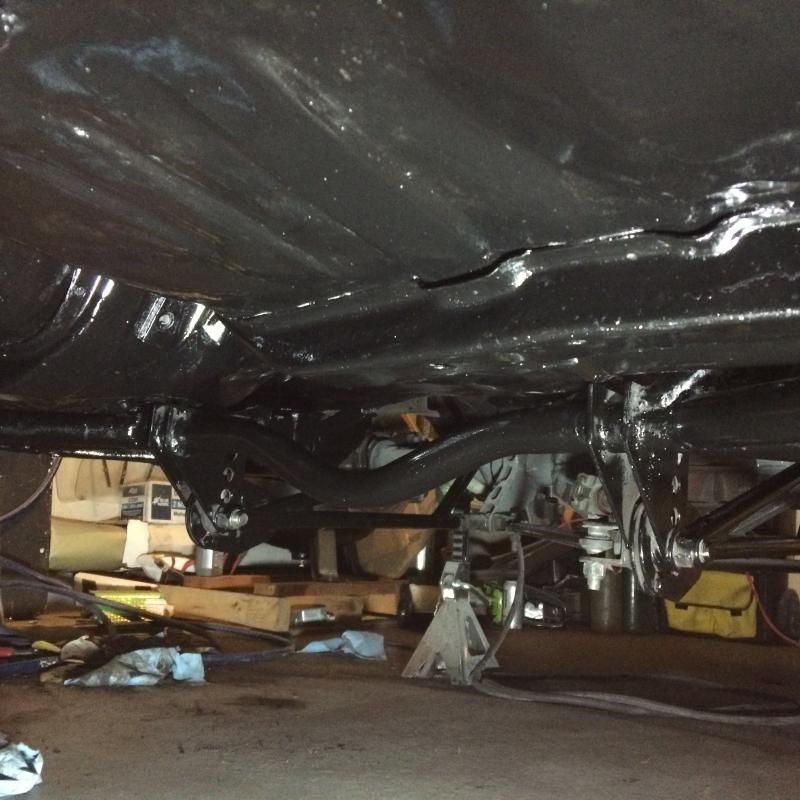

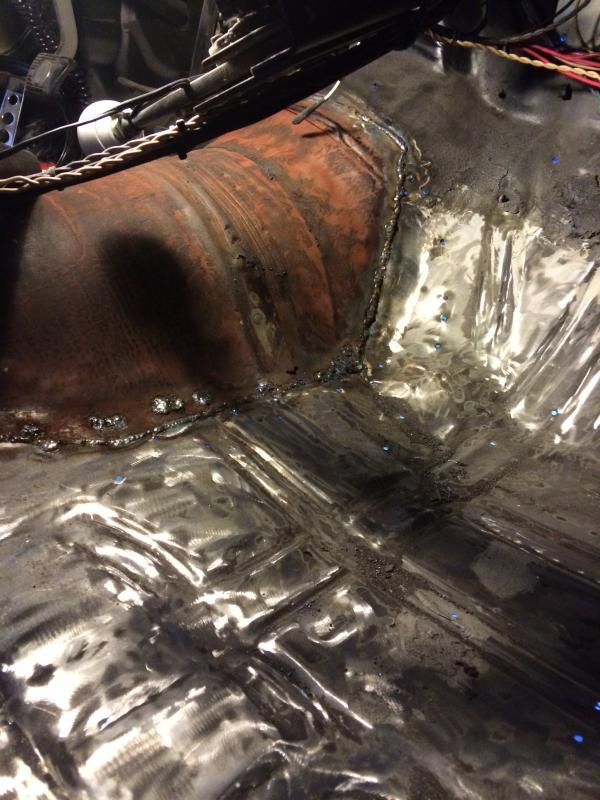

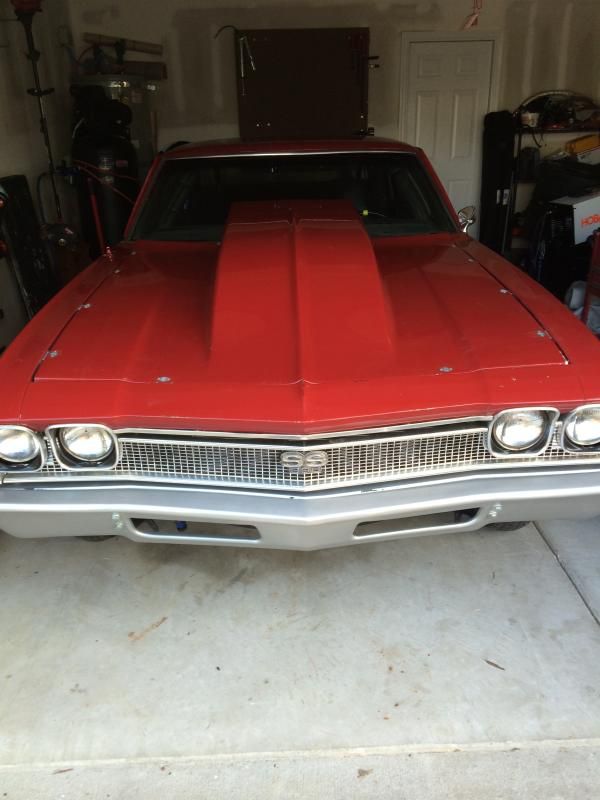

I've done alot of work on the car so far. I got it as a roller "ready to go". However, it wasn't. I've done most of the metal work for the smooth firewall and cowl, replaced the trans tunnel, scraped all the undercoating from the floor in and out, coated with chassis saver, cut out the messed up outer wheelhouses, fabbed up the motor plate, mounted the new master cylinder, routed and fabbed front brake lines, made mounting plates for the rear brake line, and did some work on the turbo headers. Here are some pics:

98Camarod · 01-15-2015, 11:02 AM

Here's more

98Camarod · 01-15-2015, 11:06 AM

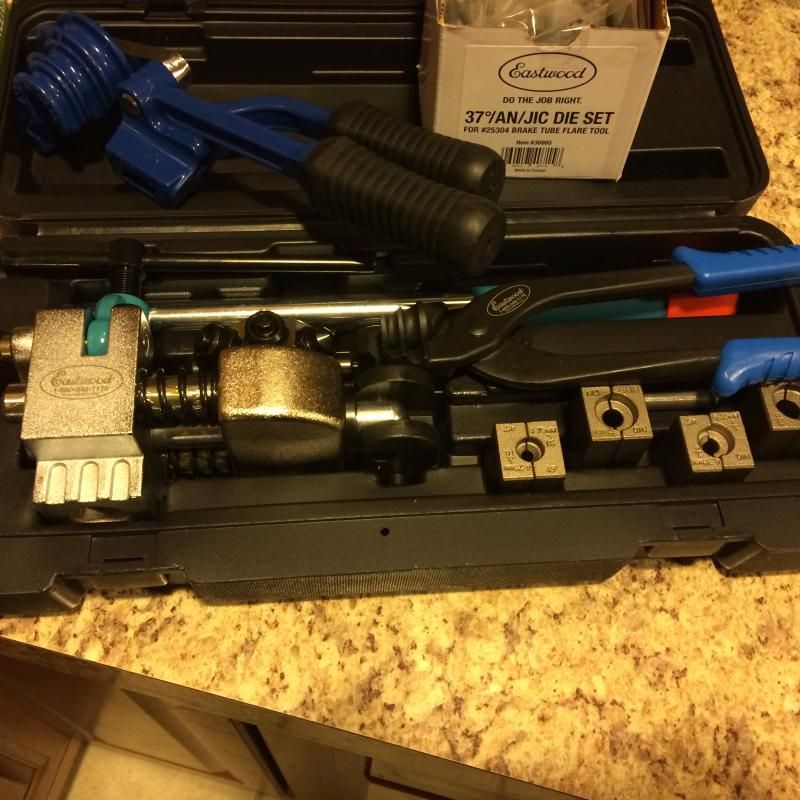

And finally, I cut the 3" vbands off and got a transition to 2.5". I welded that on and the 2.5" vbands for them. I'm waiting on my tubing to arrive, which isn't going to be until tuesday. I also got the front brake lines made and routed along with mounting plates for the rear brake line.

03SVTCOBRA · 01-15-2015, 01:40 PM

Looks good man, cool project.

Mike · 01-15-2015, 01:54 PM

Nice work!

98Camarod · 01-15-2015, 02:16 PM

Quote:

Originally Posted by 03SVTCOBRA

Looks good man, cool project.

Quote:

Originally Posted by Mike

Nice work!

Thanks! It's a lot of work and there's quite a bit more to go.

BigdaddyDupree · 01-15-2015, 02:33 PM

I like it a lot

DIGGLER · 01-15-2015, 07:33 PM

the project you are doing is nearly identical to what im working on right now. i have been working on my wheel tubs the last 2 weeks, and i have a mockup block sitting in the engine bay ready for me to do the motor plates. twin turbos as well.

98Camarod · 01-16-2015, 07:31 AM

Quote:

Originally Posted by DIGGLER

the project you are doing is nearly identical to what im working on right now. i have been working on my wheel tubs the last 2 weeks, and i have a mockup block sitting in the engine bay ready for me to do the motor plates. twin turbos as well.

Awesome! What car? Post up a build thread

Rob M · 01-16-2015, 08:31 AM

Damn Rod, been busy! Very nice, what about color? Any ideas?

98Camarod · 01-16-2015, 10:18 AM

Quote:

Originally Posted by Rob M

Damn Rod, been busy! Very nice, what about color? Any ideas?

I don't think I'll paint it any time soon. I think I like gunmetal or black

ElecTech · 01-16-2015, 09:47 AM

Looking good.

minytrker · 01-16-2015, 11:57 AM

Looking good, you done a lot of work already. What tig welder do you have?

98Camarod · 01-16-2015, 12:21 PM

Quote:

Originally Posted by minytrker

Looking good, you done a lot of work already. What tig welder do you have?

Synchro wave 180. I've had it for 5 years or so.

Pesce Nero · 01-16-2015, 01:25 PM

I can't remember the last time I saw a 69 Chevelle. Nice

Darryl Buckner · 01-16-2015, 04:16 PM

Very nice and cool car. It will be cool to see peoples faces when they hear the weird turbo noises coming from a Chevelle..

98Camarod · 01-17-2015, 08:55 AM

Quote:

Originally Posted by Pesce Nero

I can't remember the last time I saw a 69 Chevelle. Nice

There's actually a guy that drives his to work every day. It's a flat black with pin striping.

Quote:

Originally Posted by Darryl Buckner

Very nice and cool car. It will be cool to see peoples faces when they hear the weird turbo noises coming from a Chevelle..

I can't wait lol

454rat · 01-18-2015, 08:47 PM

Looks good! A website for you to check out for parts if you haven't already is www.teamchevelle.com.

Looking at putting a LS in my 68 chevelle in the next year or so myself. But just N/A and converting the car over to fuel injection.

98Camarod · 01-21-2015, 06:38 AM

I finally got my 2.5" stainless, t4 flanges and merge pieces. I got one side fitted and welded up. I welded a tab to the t4 flange and made a support out of 3/4" dowel rod.

98Camarod · 01-22-2015, 04:41 PM

I got the drivers side turbo mounted and finished welded. I also made and welded a bracket for my steering shaft.
