some pics from Alabama

Pesce Nero · 09-16-2009, 02:03 PM

went to AL for a 4 day crash course on tuning LS1 motors. here are some pics of stuff going on while i was there.

Lane's dads car rear setup. on the street this car works!!

another

Pesce Nero · 09-16-2009, 02:09 PM

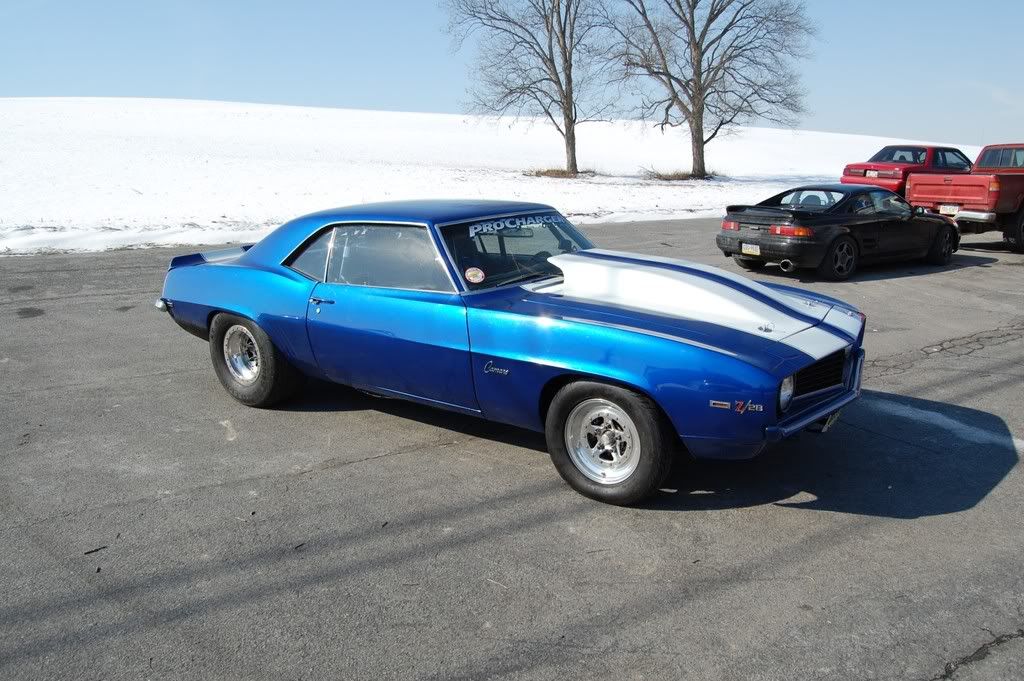

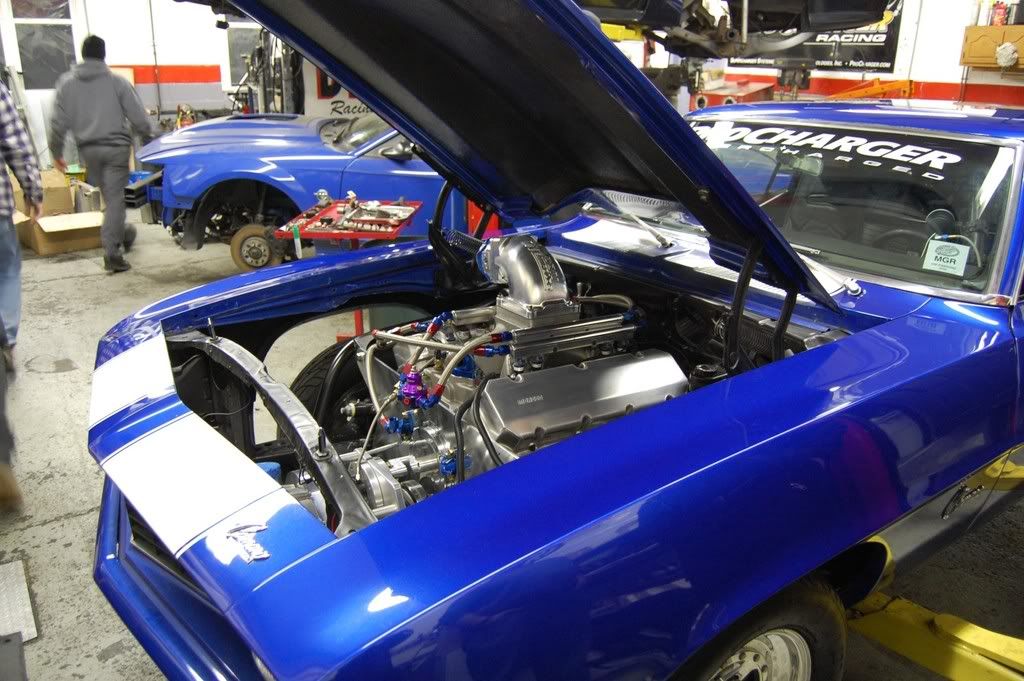

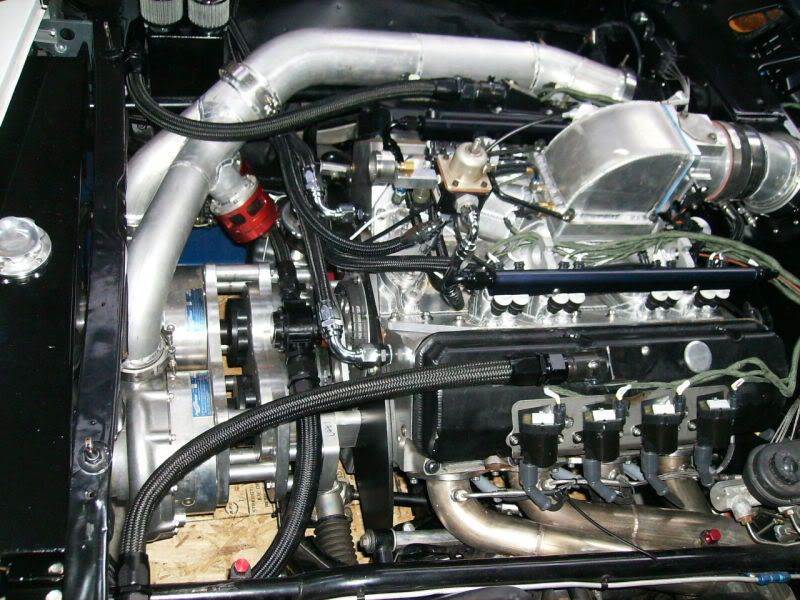

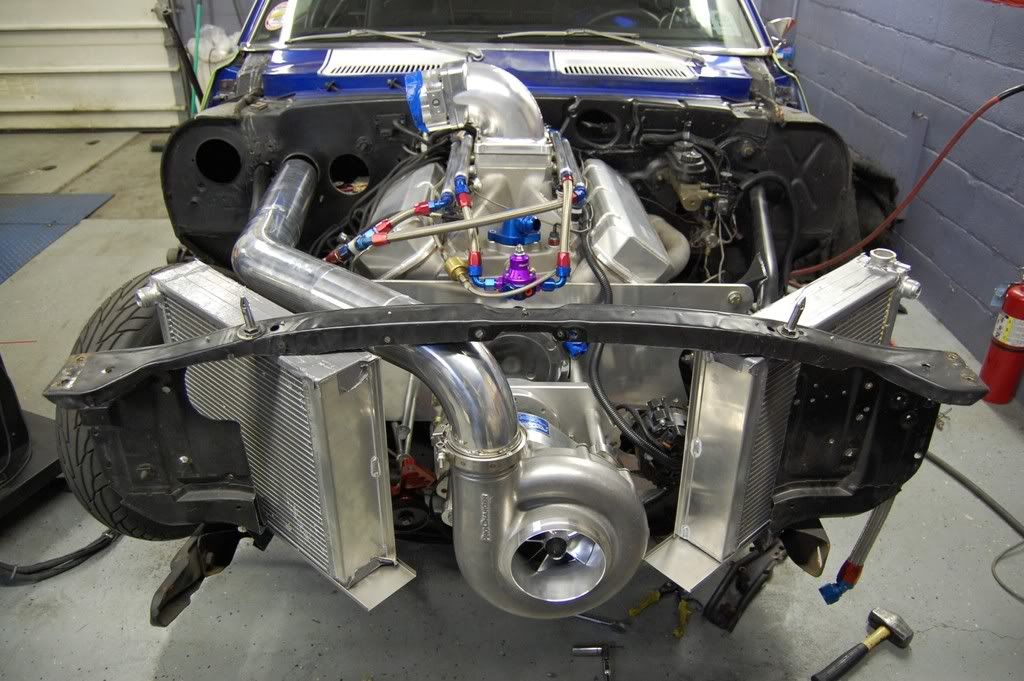

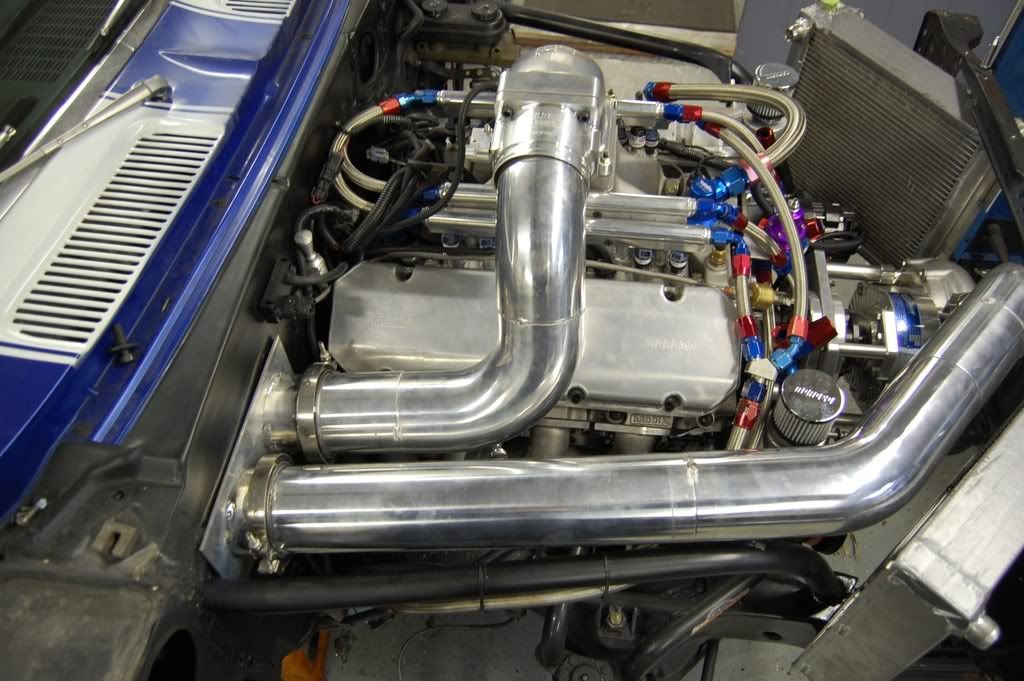

a 69 camaro limited street 10.5 car with a 632 and 2 prochargers. car was beautiful. car had a sheppard race car sticker on it.

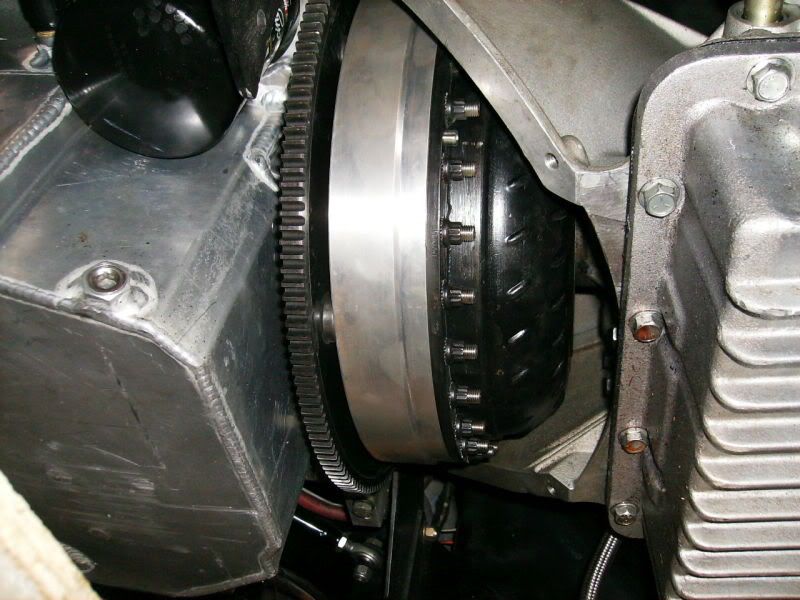

ptc converter

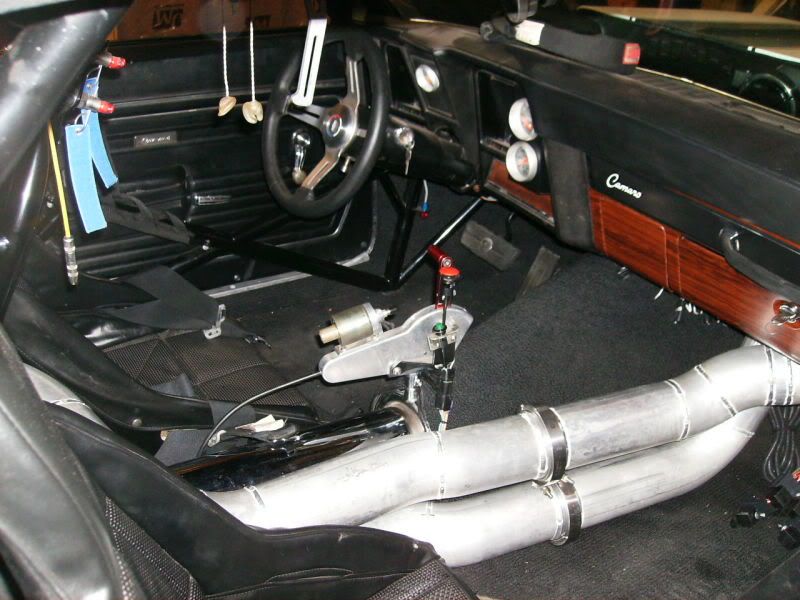

interior

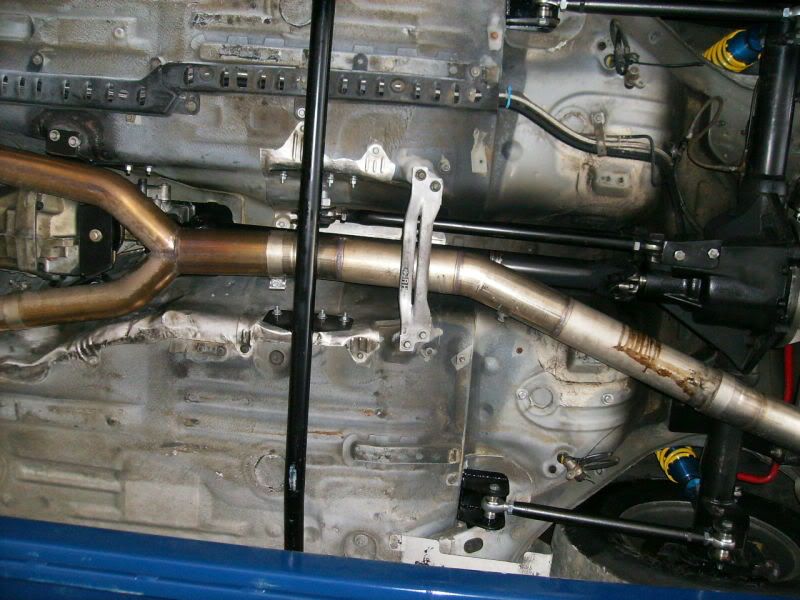

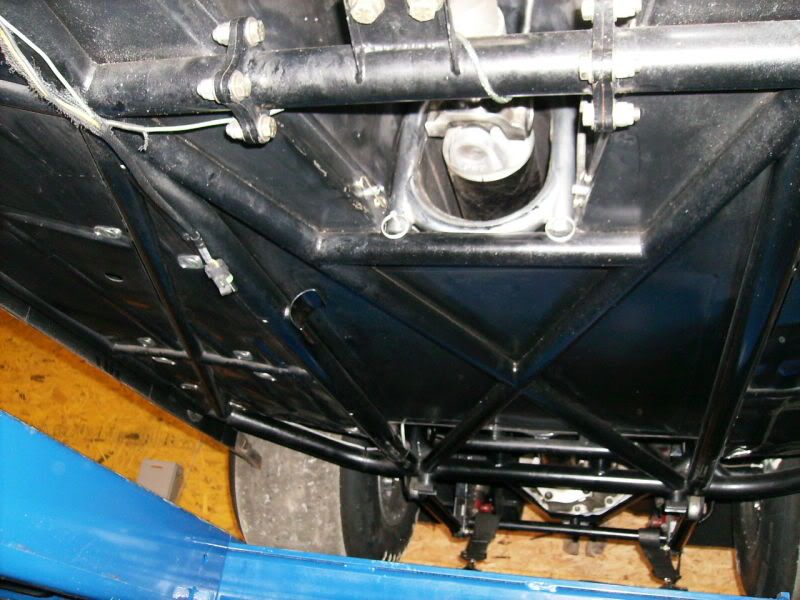

under carriage

tuning. at the end i started shaking because my eardrums almost exploded. he was only doing low rpm pulls and he got up on it and i didnt expect it

Pesce Nero · 09-16-2009, 02:13 PM

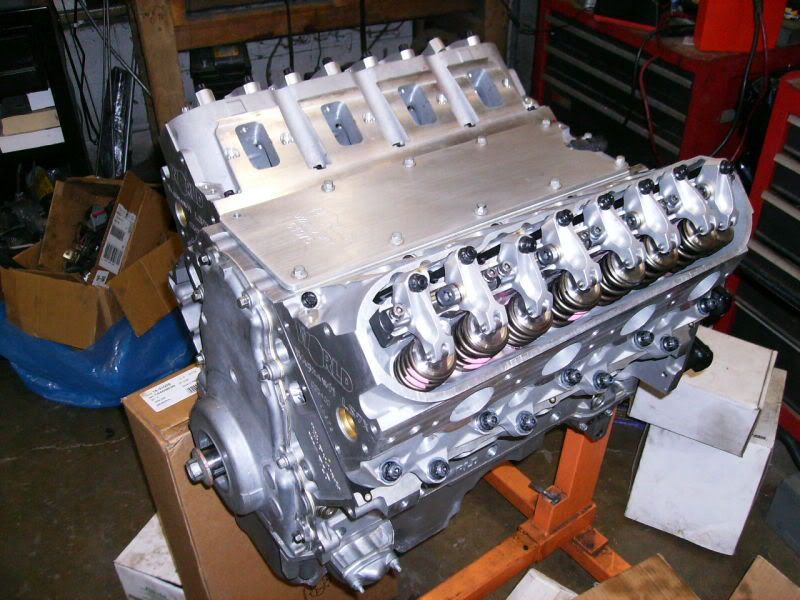

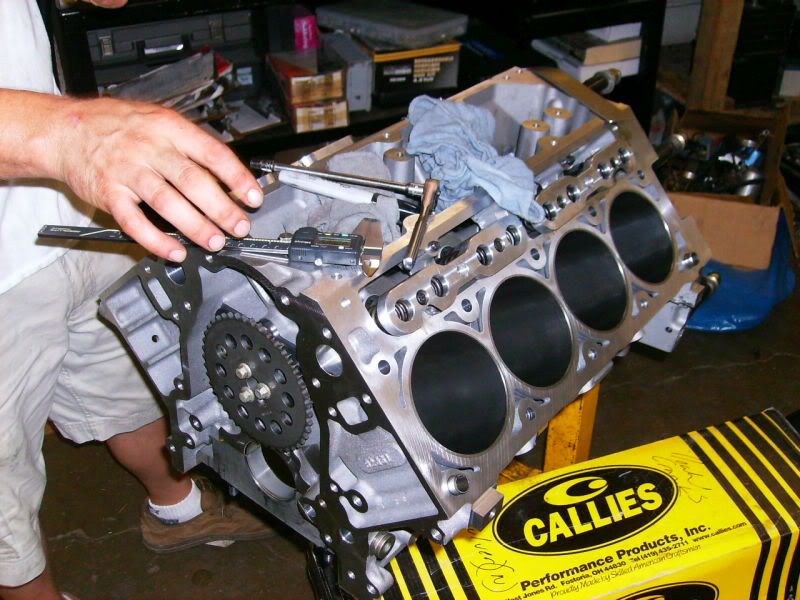

here is a ls7 world block motor. notice the 6 bolt per cylinder arrangement

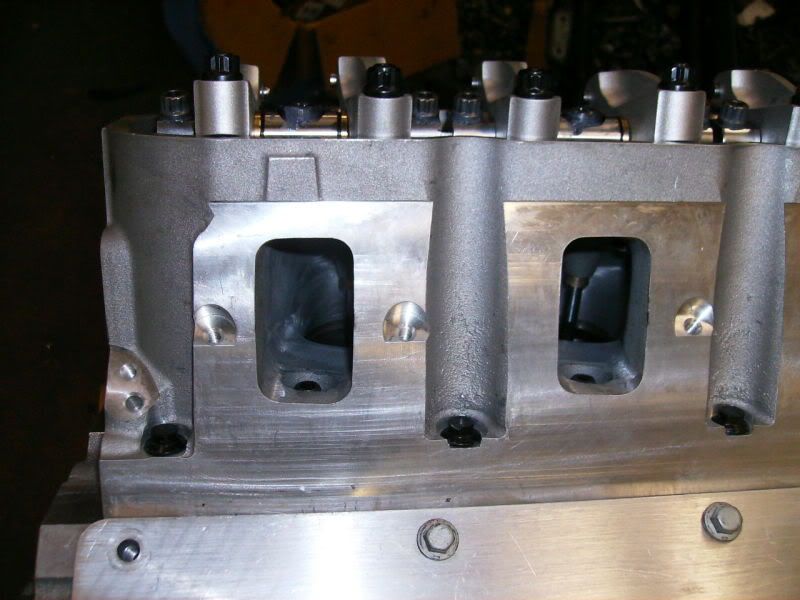

head bolt in intake port

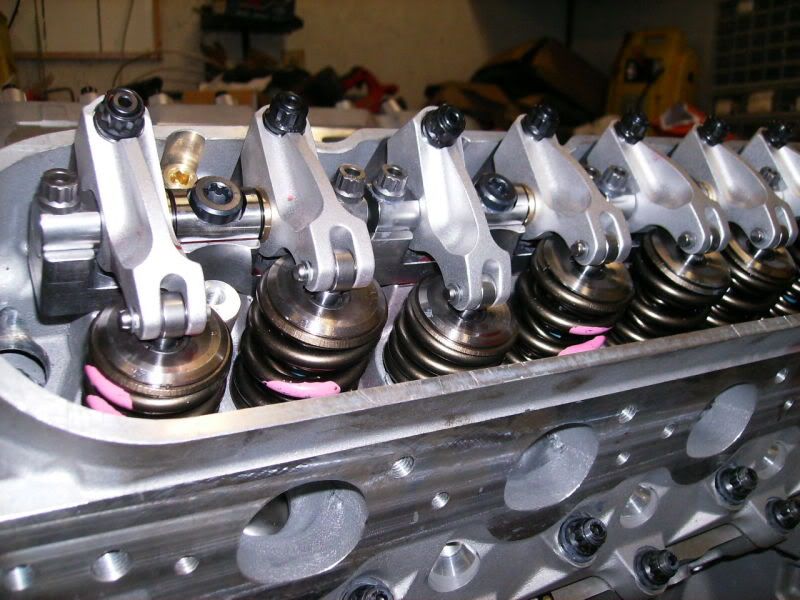

measured valve springs 1.65 with a installed height around 2.10. they were monsters

Pesce Nero · 09-16-2009, 02:24 PM

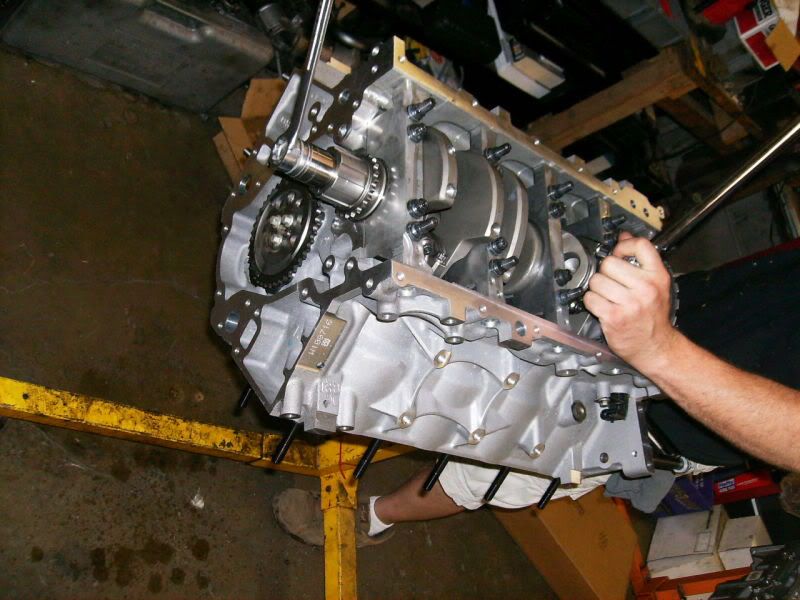

helped Lane's friend build his LS3 while i was there also. some of you guys might already know this stuff but in this pic is valve spring helpers. aluminum bars with springs and lifter guide plates help with lifter control

the eccentric cam bushing is something i have never seen before and thought it was an incredable idea.

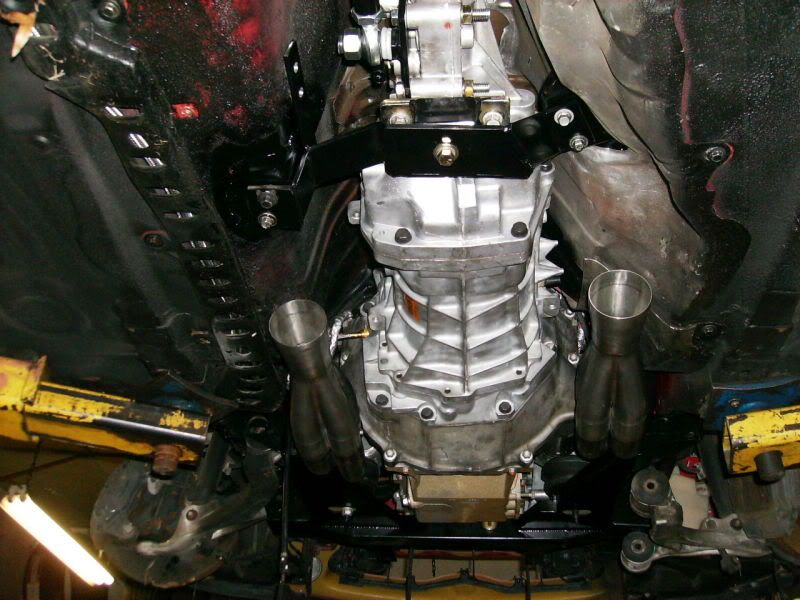

alot of differences between all the LS motors and there placment of sensors which i dont like and something that you really need to pay attention to if you start mix matching parts. LS install in a RX7

Mike · 09-16-2009, 02:24 PM

Nice pics man! Everyone asked about you last night. I told them it was Gay Pride week in Alabama. Leroy was mad you didn't invite him.

Matts94Z28 · 09-16-2009, 02:27 PM

Me wants to the LS7

s14.5gonewide · 09-16-2009, 02:29 PM

i got a buddy in pa with a similar setup

Pesce Nero · 09-16-2009, 02:31 PM

Quote:

Originally Posted by Mike

Nice pics man! Everyone asked about you last night. I told them it was Gay Pride week in Alabama. Leroy was mad you didn't invite him.

its good to be home. drove all thru the night. some good mountains in Huntsville Alabama, thought i was in PA a few times

Pesce Nero · 09-16-2009, 02:39 PM

Quote:

Originally Posted by s14.5gonewide

i got a buddy in pa with a similar setup

speaking of PA. oh god, pics of snow

s14.5gonewide · 09-16-2009, 02:41 PM

lol i am going back up in like 2 months i cant wait

98Camarod · 09-16-2009, 02:52 PM

Did you learn anything?

s14.5gonewide · 09-16-2009, 02:56 PM

Quote:

Originally Posted by 98Camarod

Did you learn anything?

the best way to learn tuning is to just get out their and do it. make small smalll changes.. see what it does and go from their.

anytime u get around someone who knows what they are doing u just absorb the info given and prey u retain everything they show u.
everytime i go to my tuner or watch him i am like a puppy... i just beg for more info..

BigdaddyDupree · 09-16-2009, 02:58 PM

sweet deal

Pesce Nero · 09-16-2009, 03:31 PM

Quote:

Originally Posted by 98Camarod

Did you learn anything?

well, i think i'm a pretty good carb/ distributer tuner so the principals are already there. Lane made me read a book called Advance Engine Management Sytems. picked up alot from the book. Lane had a basket case 98 camaro with a LS1 that had a bunch off bolt ons that didnt run worth a crap. so yesterday i spent hours upon hours tuning that on the dyno. my bigest problem is just trying to figure out how to get to the screen i want to be on to make changes. Lane makes it look easy but useing the program itself will be my biggest hurdle

minytrker · 09-16-2009, 05:52 PM

Im guessing HP Tuners? EFI Live is a little more indepth but easier to navigate. I own both and still use EFI Live all the time, it has more tables and more resolution.

Pesce Nero · 09-16-2009, 06:07 PM

it was HP tuners i was useing yesterday. i believe my friend has another one he uses also but not sure of the name.

my computer skills just are not that great. i know what i wanted to accomplish, i just needed some help getting there.

i need more practice and i think i could be good at it.

minytrker · 09-16-2009, 06:16 PM

Yeah that the hardest part, when you now exactly what needs to be changed but just donet know how to translate it over to a table and a value the computer understands. Now after doing daily for 5 yrs its hard for me to work on something old becasue I cant translate it back to doing it the old way, lol. It took me along time to adjust the carb on my boat becasue of that, lol.

98Camarod · 09-17-2009, 01:47 AM

Quote:

Originally Posted by SIXPACKGUT

it was HP tuners i was useing yesterday. i believe my friend has another one he uses also but not sure of the name.

my computer skills just are not that great. i know what i wanted to accomplish, i just needed some help getting there.

i need more practice and i think i could be good at it.

I tuned my car. I think it runs pretty good and the afr is right where I want it. I'm sure Lorenz could make it better, but I'm cheap. I have HP Tuners also

WWhittle · 09-17-2009, 05:56 PM

Holy shit that blue camaro is bad ass.
